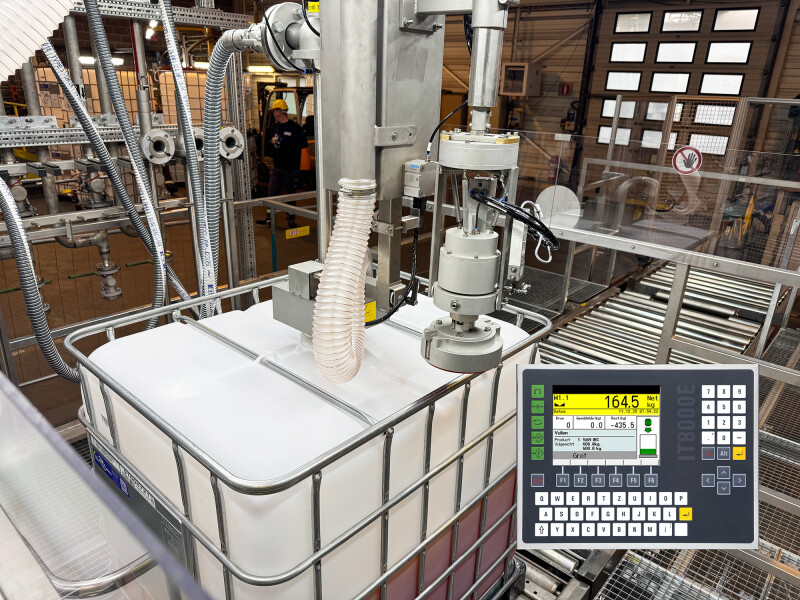

Evonik Antwerp produces highly functional silane liquids, such as Si363®, within its Smart Effects Business Line. These silanes combine with silica and rubber to form a chemical bridge, which is crucial for manufacturing “green tires” that deliver low rolling resistance, optimized wet grip, and enhanced durability. To ensure efficient filling of silane into various containers, Evonik uses, for example, automated filling systems from the scale manufacturer Kestermann, equipped with SysTec IT8000E weighing indicators and the proven FILL E application software.

Key Facts:

• W&M approved liquid filling
• Automatic gravimetric filling instrument (AGFI) for various containers such as IBCs, canisters and barrels via roller conveyor
• Control of the filling system with SysTec weighing electronics
• A throughput of 15 IBCs per hour and a filling accuracy of up to 0.5% for 1,000-liter IBCs

The Process:

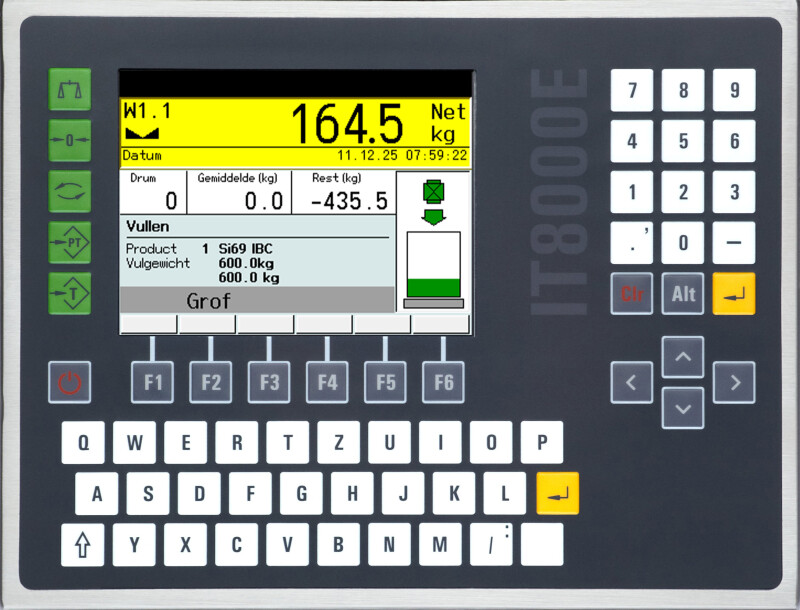

The containers to be filled are transported onto the roller conveyor of the filling system. Once the operator has entered the product number of the respective silane and the target weight, the W&M approved SysTec IT8000E weighing indicator, in conjunction with the higher-level PLC, takes over control of the automatic filling process using the under-level method.

First, containers are detected by a sensor on the roller conveyor and transported to the filling and weighing station. An optical camera system then identifies the bunghole. The opening coordinates are transmitted via the PLC to the filling nozzle, which moves into position and fills the silane through the bunghole.

The IT8000E weighing indicator controls the flow rate in several stages: first, coarse filling with a high flow rate is carried out in order to quickly reach the target weight, then the system automatically switches to fine flow in order to precisely fill the remaining quantity within the specified tolerance. Throughout the entire cycle, the SysTec weighing indicator monitors the weight, flow and tolerance limits, and controls the valves and filling lance.

The throughput of the system is 15 IBCs per hour or 60 canisters per hour, and the filling accuracy is up to 0.5% for 1,000-liter IBCs.

The weighing and process data is transferred to a higherlevel control system via the PROFINET interface. There, the data is stored, logged for batch documentation and evaluated for quality and audit purposes, with integrity and traceability guaranteed at all times.

Benefits:

• Fast: Gravimetric filling method enables rapid and accurate filling of large quantities
• Precise: W&M approved liquid filling without overfilling or underfilling the containers
• Flexible: Easy product/container changeover and selection of unit of weight displayed (litres or kilograms)
• Easy data transfer: Weighing data is captured by the SysTec weighing indicator and transferred via the PROFINET interface to the customer‘s higher-level control system
• Efficient: Automatic transport of containers, automatic bunghole detection and filling
• Low maintenance and easy cleaning: The system has a modular design and is made of stainless steel

Products:

• IT8000E: robust and flexible SysTec weighing indicators for continuous operation
• SysTec FILL E application software ensures fast filling; software adaptation according to the customer's requirements
• High-performance Kestermann filling system, including assembly and service
