New Weight Indicators 3590EGTBOX8 and 6116BOX designed for Self-Service Systems

New Weight Indicators 3590EGTBOX8 and 6116BOX designed for Self-Service Systems

Dini Argeo S.r.l. (Italy) - Transform a Weighbridge into a Smart system.

  • 8" and 10.1" high brightness touch screen display suitable for outdoor use.
  • High-speed thermal panel printer with paper cutter. Protection from rain and adverse weather conditions.
  • RFID card and badge reader, useful for the recalling of database, first/second weighing and operator authentication.
  • Automatic stabilised temperature with fan and double ventilation grille for cooling during summer, and internal heating unit for winter.

3590EGTBOX8: Kiosk with weight indicator for self-service systems and weighbridges, with 8" touchscreen:

Stainless steel kiosk with 8" touchscreen weight indicator, perfect for self-service weighbridges management. Fitted with thermal printer and RFID reader. Open to CE-M type-approval.

Technical features:

  • Satin stainless steel electrical panel board, fitted with electromechanics and power supply unit for integrated devices.
  • Protection visor for outdoor use, from sun and adverse weather conditions.
  • 8" high-brightness resistive touchscreen display, suited for use with gloves and water/condensation.
  • Completely customizable display.
  • Double aeration grille with built-in fan.
  • Internal heating unit with thermostat.
  • Choice from QWERTY, AZERTY or QWERTZ touchscreen keyboard settings.
  • Built-in RFID reader, with reading distance up to 30mm.
  • Fitted with Alibi Memory.
  • Quick display language selection.
  • Thermal printer fitted with paper cutter. Printing speed >150mm/sec., 200 dpi resolution, 24/40 columns, 80mm paper width.
  • Completely configurable and customisable tickets.
  • AF03 software for weighbridges, standard configuration for self-service use.
  • A/D 24 bit converter, 4 channels, up to 3200 conv./sec. with autoselect and up to 8 signal linearisation points.
  • 4 analogue independant weight reading channels (up to 2 in the E-AF03 version).
  • Max. 10.000e or multi-range 3 x 3000e @ 0,3 µV/d in CE-M legal for trade approved version.
  • Max. 1.000.000 displayable divisions for internal use with internal resolution up to 3.000.000 points.
  • Power supply a 110-240 Vac.

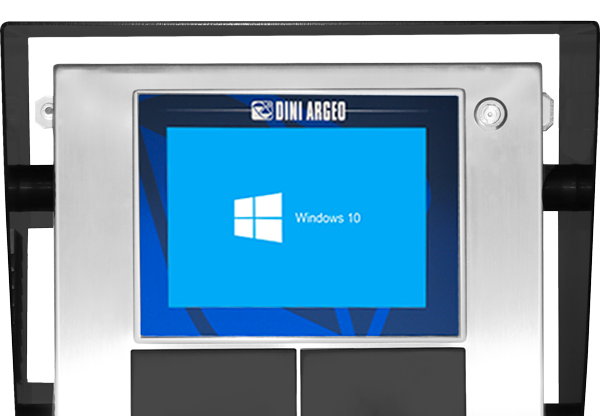

6116BOX: Kiosk with industrial pc for self-service systems and weighbridges, with 10.1'' touchscreen:

Stainless steel kiosk with 10.1'' touchscreen PC, perfect for self-service weighbridge management. Equipped with thermal printer and RFID reader.

Technical features:

  • Satin stainless steel electrical panel board, equipped with electromechanics and power supply unit for integrated devices.
  • Protection visor for outdoor use, from sun and rain.
  • 10.1" high-brightness resistive touchscreen display (1280x800px), suitable for use with gloves and water/condensation.
  • Intel 64bit Quad Core Processor, up to 1.92GHz.
  • Intel GEN 8 HD 400 Graphics Processor Unit (GPU).
  • Windows 10 operating system pre-installed.
  • 4GB DDR3L RAM.
  • Fast data storage 64GB eMMC.
  • Built-in RTC (for date/time, bios, etc).
  • Double aeration grille and built-in fan.
  • Internal heating unit with thermostat.
  • RFID proximity reader, with reading distance up to 30mm.
  • Thermal printer with paper-cutter. Printing speed >150mm/sec., 200 dpi resolution, 24/40 columns, 80mm paper width.
  • 110-240 Vac power supply unit.

For more information about this article from Dini Argeo S.r.l. click here.
