Weighing Review Awards 2024
Nominated for Best Weighing Software/Solutions

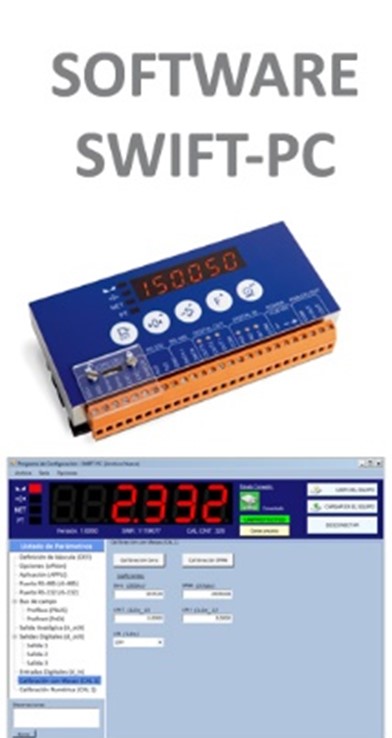

UTILCELL SWIFT-PC
UTILCELL (Spain) - The SWIFT-PC SOFTWARE is specially designed to configurate and calibrate remotely the UTILCELL SWIFT Weighing Indicator and High-speed Transmitter. In addition to the complete calibration via RS-232, it is now possible to remotely configure several indicators connected to the RS-485 bus from a single central computer, without physically moving to each SWIFT transmitter, significantly reducing the time and costs of commissioning.
Saving the configuration files and the calibrations by masses enables and simplifies the commissioning of new configuration SWIFT devices. So, the SWIFT-PC software is the best solution for all the Machine builders who can easily replicate the entire configuration of all the SWIFTs installed to reduce lead times. Also, it’s very useful for the Scale Manufacturers who can easily replace the SWIFT devices using the configuration and calibration of the replaced device.

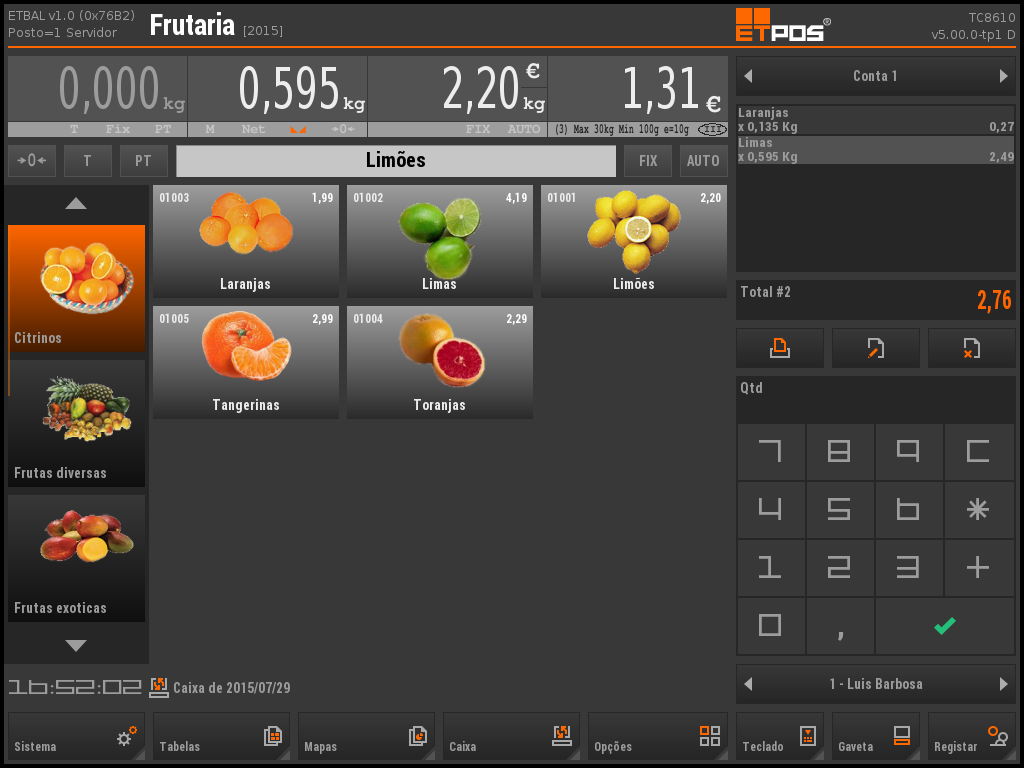

Balanças Marques ETPOS 5
ETPOS 5 is a certified weighing, billing and management software, used on Balanças Marques BM5 retail scales, the completion of the market search for a solution that would meet the users real needs, making use of the most modern and functional technology.
ETPOS 5 is a versatile and fully configurable weighing and POS software to suit diverse commercial management features, with a complete resources optimization since it is designed for a well defined specific utilization.
ETPOS 5 is a reference in the Portuguese market, with thousand of users, due to the success that rapidly gained given its numerous qualities, being exported to important markets such as Spain, France, Germany, amongst many other countries all over the world.
ETPOS 5 is certified by NMI Certin B.V. with No. TC8610, as part of a scale, in accordance with the requirements of EN 45501 and OIML R76-1, which ensures compliance with the essential requirements of Directive 2009/23/EC the non-automatic weighing instruments.
DIBAL Software for productivity control for food industry
In companies where manual packaging is part of the process, which is very common in the fruit and vegetable and canning sectors, it is of vital importance to ensure that each package contains the established amount of product within the defined limits, both to avoid offering a product that does not reach the target weight, and to avoid exceeding the target weight and incurring losses.
Our Productivity Control solution allows:
- Monitoring the manual filling lines to control overall production, by line an by worker, being able to measure unit and overall productivity and efficiency.
- Avoiding the memorisation of product data and/or validity limits by the worker, as these are set on the indicator's display from the management software.
- Collecting data both on the company's server and in the cloud (with this option the data will be accessible fro many device with internet access).
- The line manager to analyse real-time or historical data an make decisions without physically going to the line (productivity management, waste an overfilling, and employee presence).

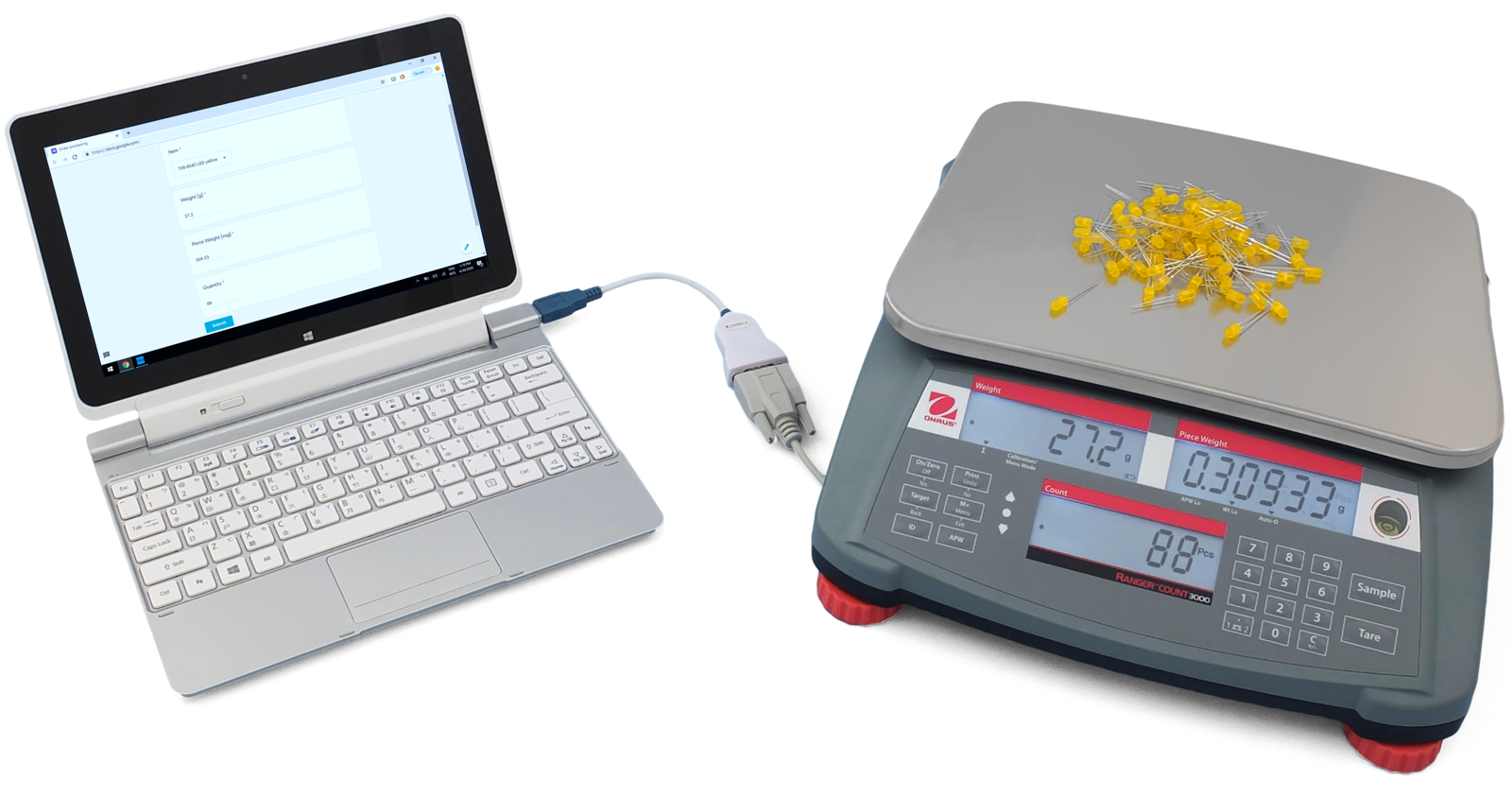

Smartlux 232key Pro
232key Pro is a powerful and flexible keyboard wedge software designed for users who require custom data processing. With its ability to capture data from a connected device and run it through user-defined C# scripts, 232key Pro offers a high degree of customization and control.
Key Features:
- Scriptable data processing: 232key Pro allows users to write custom C# scripts to process captured data according to their specific requirements. This enables advanced data manipulation, formatting, and validation before outputting the results as simulated keyboard strokes.
- Versatile connectivity: The software supports connections made through COM ports (RS232, USB virtual COM ports, Bluetooth Serial Port Profile) and TCP/IP (wired Ethernet or WLAN, acting as a TCP client on persistent connections). This flexibility ensures compatibility with a wide range of devices such as scales and balances, counting scales, moisture analyzers and many more.
- ASCII and beyond: While 232key Pro primarily handles ASCII characters, users can leverage their scripting skills to decode other formats and potentially add support for additional protocols, further extending the software's capabilities.
- Comprehensive documentation: 232key Pro provides detailed documentation, including a scripts page with extensive information and examples.
Who Should Use 232key Pro?
232key Pro is designed for users with a basic understanding of C# programming who require advanced data capture and output functionality. It is particularly well-suited for scenarios where off-the-shelf keyboard wedge software falls short.
For users seeking a simpler solution, 232key.com offers alternative versions of the software that cater to less complex requirements.

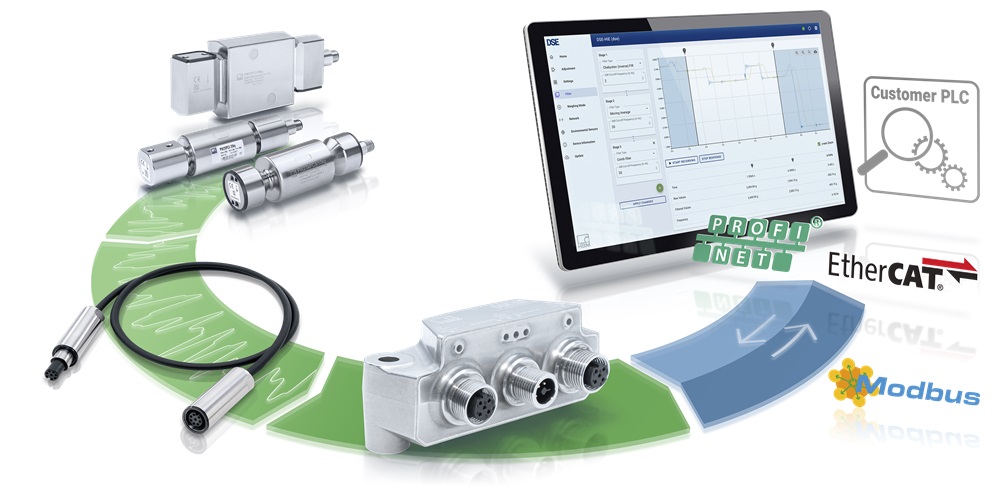

HBK Pecision and Efficiency: Introducing the DSE Webserver with Smart Functions
Introducing the DSE Webserver with Smart Functions, a cuting-edge solution tailored to streamline the parameterization of weighing applications. Featuring an intuivve graphical user interface (GUI), users gain effortless access to a comprehensive suite of tools for configuring their weighing processes, encompassing sensor parameterization, scaling, and calibration. Moreover, the web server incorporates advanced functionalities like filter settings and optimization, ensuring meticulous measurement analysis.
The integration of Smart Functions, including Check Weigher and Filler algorithms, further elevates operational efficiency. With its robust parameter set and data management capabilities, users can seamlessly oversee their weighing operations. Furthermore, the web server facilitates seamless control via PLC through its object directory. Additionally, the DSE Webserver Signal/filter settings offer enhanced signal analysis and filter optimization, supporting up to five cascaded filters for unparalleled accuracy.
With various filter types such as FIR, IIR, moving average, and comb filters, signal smoothing and unwanted oscillation elimination are effortlessly achieved. With its streamlined workflow, users can swiftly atain stable and dependable measurement results.
DSE web server with Smart Functions:
- Clear GUI with all options for parameterizing the weighing application
- Sensor parameterization, scaling, calibration process
- Filter settings and optimization
- Smart Functions: Check Weigher and Filler algorithms
- Parameter set, data management
- Object directory of all functions from the web server for control via PLC
DSE web server Signal/filter settings:
- Measurement signal analysis, filter settings
- Optimized filter settings - up to five cascaded filters possible
- 1st stage FIR, IIR, 2nd-5th stage moving average and/or comb filters
- Workflow: - 10 sec. signal recording- Stage 1 filter (IIR, FIR) for smoothing the signal curve
- Optimization of the time window up to the stable measured value
- Stage 2-5 for filtering unwanted fundamental oscillations
